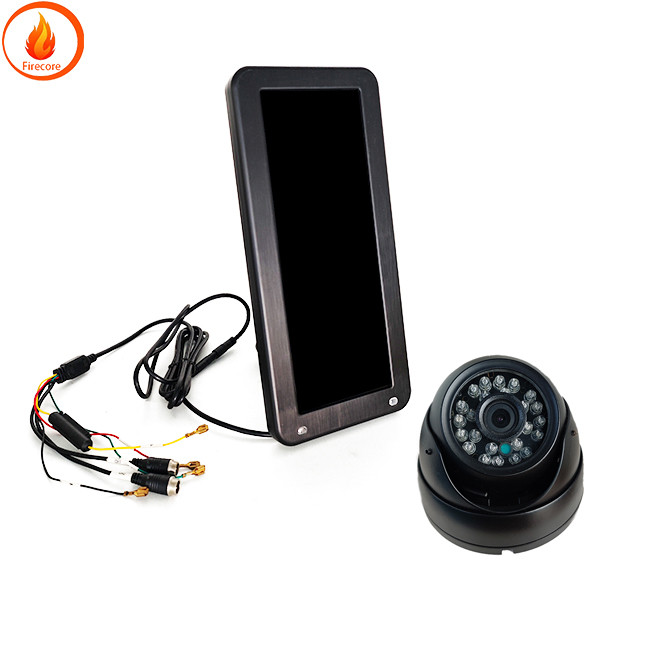

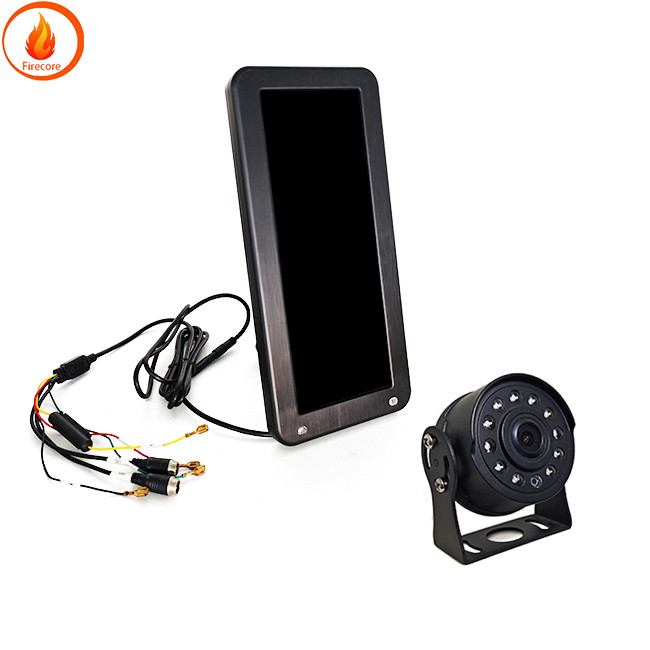

720P / 1080P Kamyon Güvenlik Kameraları Kör Nokta 36V Elektronik Arka Görünüm Kamerası

Kamyon Güvenlik Kameraları Kör nokta yan görüş elektronik arka görüş aynası 12.3 inç ekran kamerası

Ürün parametreleri:
Görüntüle:
1. Boyut: 12.3 " (8.3)
Çözüm: 1920 * 720P
3. Arka ışıklandırma: LED parlaklığı: 850cd/m2
4. Kontrast: 800: 1
5. Perspektif aralığı: yukarı 85 derece aşağı 85 derece
Güç kaynağı: DC9 - 36V
7. OSD kontrolü: video oynatma video ayarları ekran ayarları dil seçimi ters ayarlar sistem ayarları
Güç 5W.
9. Sinyal giriş: 720P / 960P / 1080P / CVBS karışık giriş
Dosya biçimi: AVI / JPG
11. Bellek: 256GB TF kartını destekler.
Video sıkıştırması: H.264
Kayıt çözünürlüğü: 720P / 960P / 1080P / CVBS
14. Sistem dilleri: Çince İngilizce
15. Ekran: tek ekran / çift ekran / 5 : 5 / 6 : 4 / 7 : 3 CHI CH2 1080P eşzamanlı görüntüleme işlemi
16. Tek yönlü tetikleyici kontrolü:
Video biçimi: PAL / NTSC otomatik geçiş
HD kamera:
Karar: AHD 720P/960P/1080P
Yatay geniş açı: 90 - 150
Su geçirmez sınıf: IP68

Biz araştırma ve geliştirme üretim ve araç izleme profesyonel bir üreticisiyiz

Araba video kaydedici araba kamerası araba usb kamerası araba ekranı usb kamera

Lütfen e-posta yoluyla bizimle iletişime geçin:firecore1688@163.com

Bir.  The onboard monitoring terminal consists of a camera  onboard DVR  control equipment   and wireless router   The camera is responsible for collecting video data and encoding it by the onboard DVR  The encoded data is transmitted to the remote command and dispatch center through a modular wireless router

- İki.  The transmission part mainly uses wireless and wired methods for transmission    On sports vehicles    our company's 3G network is mainly used for video transmission   After DVR collects and compresses video signals   the compressed video data is sent to the command and dispatch center through wireless network   The wireless router completes the communication between DVR and IP network in the system   Wireless routers maximize the throughput of the system   making wireless surveillance videos smoother    Wireless routers support VPN tunneling  fixed IP dialing  and bidirectional authentication function    fully ensuring the security and stability of the system

- Üç.  The monitoring center installs corresponding server systems and platform software in the monitoring center to achieve unified management of vehicles and yard equipment    and distributes data and video streams for staff to monitor    In practical application systems    there will be multiple servers    mainly including management servers     recording servers   streaming forwarding servers    and several application servers   each providing several functions

Dört.  The application software staff can operate and manage the system through the client software   obtain corresponding videos and other related information according to user permissions   and also issue instructions to the driver through the system for remote command with a strong sense of presence    In emergency situations    the system can be used to command and guide passengers

Sistem bağlantısı:  To further connect with other systems through this platform   the platform software reserves multiple interfaces to achieve information sharing and linkage with industries such as public security    media, and logistics    It also has the function of publishing information to public users    Other business systems can also be integrated into this system to achieve unified operation and effective linkage of various systems
